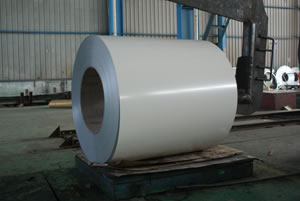

Why Choose Our Color Coated Steel Sheet?
1. Our color coated steel sheet features superior flatness and customizable colors. It also offers good thickness tolerance due to our adoption of ABB and Siemens automation control during production.
2. The adhesion among the zinc coating, paint layer and steel base is very strong, so the color coated steel sheet is durable and offers long service life.
3. We can also offer color coated steel sheet with maximum 17 microns thickness back-side painting, so as to suit customers' gutter and related product production demands.
Color Coated Steel Sheet Coil Applications
With well controlled delta E and excellent mechanical properties, our color coated steel sheet can be used in corrugated sheets, sandwich panels, and roof tiles production. Also, it is regularly used in construction, furniture, home appliance, and steel windows industries.
Due to high quality and wide range of applications, our products have been successfully exported to a wide range of countries, and we have become a top one Chinese color coated steel sheet exporter to EU.
Specifications of the Color Coated Steel Sheet Coil
1. Grade: CQ quality
JIS G3312, CGCC
EN10169, DX51D
2. Thickness: 0.2-0.8mm
3. Width: 1000-1250mm
4. Surface and Treatment: Paint, double paint in same color
Paint thickness:
TOP: 25+/-5 microns (primer + polyster)
BACK: 7+/-2 microns 17+/-5 microns
Zinc coating: Z60-Z180g/m2
5. Coil Weight: Max.12MT
Coil ID: 508mm/610mm
Steel Sheet Packing
The color coated steel sheet in coil adopts standard seaworthy export packing. It is strapped transversely and longitudinally with four steel straps respectively, and meanwhile, it comes with galvanized metal fluted rings for inner and outer edges protection. In addition, the coated steel sheet comes with two disk shaped end covers made using galvanized metal and waterproof paper for ends protection, and is further protected by galvanized metal and waterproof paper around its inner and outer circumferential surfaces.
As an experienced color coated steel sheet manufacturer in China, PanHua Group also offers prepainted galvalume steel coil, tinplate coil, hot dipped galvanized steel strip, cold rolled steel coil, and more.
