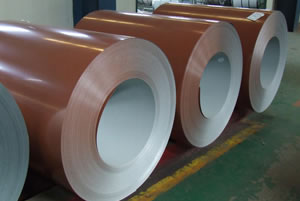

Our pre-painted galvanized steel coil uses galvanized steel as the basic substrate metal. It offers superior corrosion resistance and is additionally characterized by easy processing. It is commonly found in industries like construction, transportation, household appliance, furniture, steel windows, and so on.
With well controlled delta E and excellent mechanical properties, the pre-painted galvanized steel coil is also ideal material for production of corrugated steel sheets, sandwich panels and roof tiles.

Advantages of the Pre-Painted Galvanized Steel Coil
1. Our pre-painted galvanized steel coil features superior surface flatness. Its color is customizable. Our utilization of ABB/Siemens automation control during production provides it with good thickness tolerance.
2. The adhesion among the zinc coating, paint layer and steel base materail is very strong. So, our pre-painted galvanized steel coil comes with high durability and long term corrosion resistance, etc.
3. Back-side coating with maximum thickness of 17 microns is available. This makes the steel coil ideal for gutter production.
4. We have been in pre-painted galvanized steel coil production industry for many years, and we are the top one Chinese PPGI exporter to EU. The vast experience and the broad market in EU is a strong guarantee for our product quality.

Specifications of the Pre-Painted Galvanized Steel Coil
1. Grade: CQ quality
                  JIS G3312, CGCC
                  EN10169, DX51D
2. Thickness: 0.2-0.8mm
3. Width: 1000-1250mm
4. Surface and Treatment: Paint, double paint in same color
     Paint thickness:
     TOP: 25+/-5 microns (primer + polyster)
     BACK: 7+/-2 microns 17+/-5 microns
     Zinc coating: Z60-Z180g/m2
5. Coil Weight: Max.12MT
    Coil ID: 508mm/610mm

Packing of Pre-Painted Galvanized Steel Coil
The pre-painted galvanized steel coil adopts seaworthy export packing. To illustrate, the coil is strapped with four radial steel bands and four circumferential steel bands, and also comes with galvanized metal fluted rings for protection of inner and outer edges. Meanwhile, galvanized metal and waterproof paper disks are available for the protection of the two ends. Additionally, the pre-painted galvanized steel coil is further protected by the galvanized metal and waterproof paper around the interior and exterior circumferential surfaces.

Our company is a China-based pre-painted galvanized steel coil manufacturer and supplier. We also offer color coated steel strip, cold rolled steel, tinplate coil, hot dipped galvanized steel, and more.
