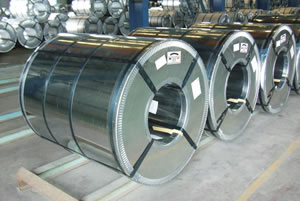

Features of HDGI Steel
1. Our HDGI steel has superior flatness. Meanwhile, the HDGI steel sheet comes with highly accurate and uniform thickness, as a result of our adoption of ABB and Siemens automation control during production.
2. Due to our vast experience in this field, we can ensure the strong adhesion between the zinc coating and steel substrate material. Thus, our HDGI steel is provided long service life, as its coatings won't peel easily.
3. After hot dip galvanizing, the HDGI steel is additionally given passivating treatment. This further ensures the white rust resistance performance of the steel.
Applications of HDGI Steel
The HDGI steel, also known as hot dipped galvanized steel, is optimum material for prepainted galvanized steel products production. In addition, it is widely used in stationery, daily life commodity, building material, transportation, vehicles manufacturing, electrical equipment, and more industries.
As a result of high durability, reliable performance and competitive price, our HDGI steel products have been successfully sold to many countries around the world, and are especially popular in Brazil and Iran. Currently, we have become the top 2 Chinese HDGI exporter to the two countries.
Specifications of HDGI Steel
Grade: CQ quality
JIS G3302, SGCC
ASTM A653 CS, TYPE B
EN10142, DX51D
Thickness: 0.2-2.5mm
Width: 1000-1250mm
Surface and Treatment: Chromated, regular/minimum spangle, unoiled
Zinc coating: Z60-Z180g/m2
Coil Weight: MAX 14MT
Coil ID: 508mm/610mm
Packing of HDGI Steel

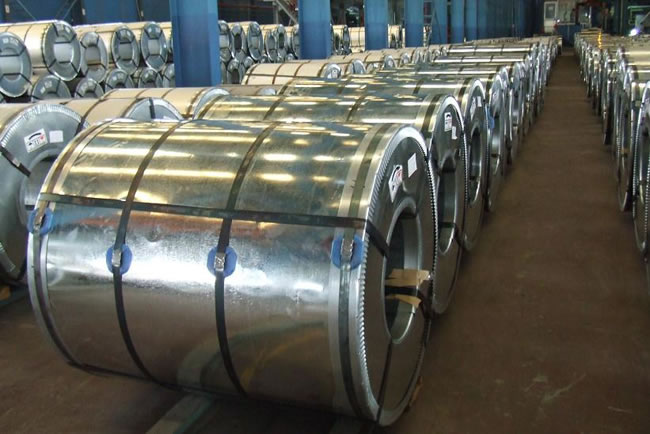

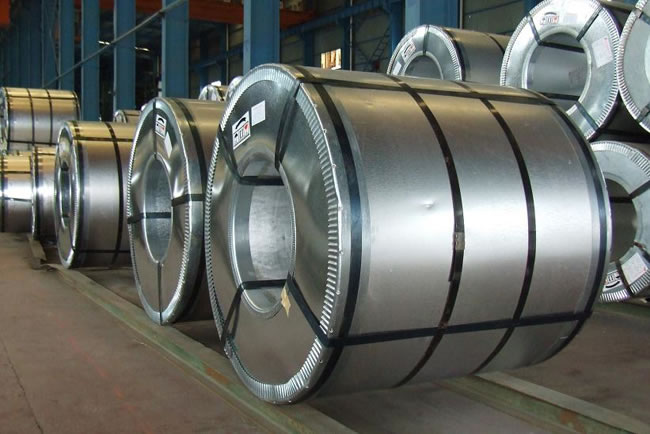

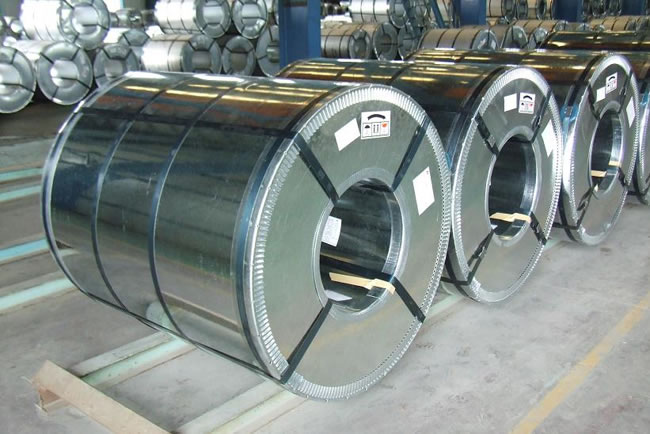

Our HDGI steel is delivered in maximum 14 metric tons coil. It adopts standard seaworthy export packing. To illustrate, the HDGI steel in coil is strapped with four radial bands and four circumferential bands in steel, and also comes with galvanized metal fluted rings for inner and outer edges protection. It is also packed by galvanized metal and waterproof paper disk for protecting the two ends, and further protected by the galvanized metal and waterproof paper around the inner and exterior circumferential surfaces.
As a specialized HDGI steel manufacturer and supplier in China, we offer a wide range of products that includes PPGL steel, silicon steel coil, cold rolled steel, and tinplate coil, among others.
