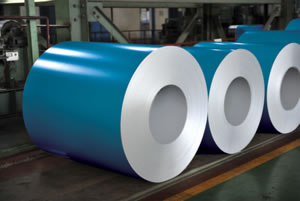

We can offer color coated steel strip with varied specifications, so as to suit customers' different application demands. The thickness of our color coated steel strip ranges from 0.2mm to 0.8mm, and width from 1000mm to 1250mm. Now, our products are well received in a wide range of countries, especially in European Union countries. This makes us a top ranked Chinese color coated steel strip exporter to EU.
Due to our adoption of ABB and Siemens automation control system, the color coated steel strip offers high precision thickness. In addition, it features well controlled delta E, excellent mechanical properties, superior surface flatness, and strong adhesion among its zinc coating, paint coating and base material.
With above advantages, our color coated steel strip is widely used as the base material for corrugated steel sheet, sandwich panel and roof tiles production. Also, it is used in architectural decoration, transportation, household appliance housing production, furniture, construction, and related industries. In addition, the color coated steel strip can be provided with back-side coating with a maximum thickness of 17 microns, so as to suit gutter production demands.
Specifications of the Color Coated Steel Strip
1. Grade: CQ quality
JIS G3312, CGCC
EN10169, DX51D
2. Thickness: 0.2-0.8mm
3. Width: 1000-1250mm
4. Surface and Treatment: Paint, double paint in same color
Paint thickness:
TOP: 25+/-5 microns (primer + polyster)
BACK: 7+/-2 microns 17+/-5 microns
Zinc coating: Z60-Z100g/m2
5. Coil Weight: Max.12MT
Coil ID: 508mm/610mm
Packing of the Color Coated Steel Strip
Our color coated steel strip is delivered in maximum 12 metric tons coil. It adopts standard seaworthy export packing. To illustrate, the color coated steel strip coil is strapped with four radial bands and four circumferential bands in steel, and also comes with galvanized metal fluted rings for inner and outer edges protection. It is also packed by galvanized metal and waterproof paper disk for protecting the two ends, and further protected by the galvanized metal and waterproof paper around the inner and exterior circumferential surfaces.
PanHua Group is a color coated steel strip manufacturer based in China. Apart from color coated steel, we also supply silicon steel coil, hot dipped galvanized steel, CRCA steel, tinplate coil, and much more.
