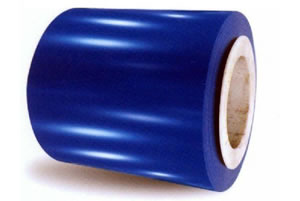

PPGL steel refers to prepainted galvalume steel. We have become the top one Chinese exporter of PPGI steel to EU, due to the high quality and variable specifications of our products. To illustrate, our PPGL steel is available in different colors. Also, it offers superior flatness, well controlled delta E, and excellent mechanical properties. With strong adhesion between its zinc coating and steel substrate material, PPGL steel offers long service life as its coating material won't peel off easily. In addition, our prepainted galvalume steel products offers high thickness precision due to our adoption of ABB and Siemens automation control system during production process.
Applications of PPGL Steel
PPGL steel is ideal substrate material for production of corrugates sheets, roof tiles, sandwich panels, household appliance housing, and more. It is also commonly used in industries such as construction, transportation, furniture, steel windows production, and more. In addition, our PPGL steel with back-side coating thickness between 7 microns and 17 microns can also be used for gutter making.
Specifications of PPGL Steel
1. Grade: CQ quality
JIS G3312, CGCC
EN10169, DX51D
2. Thickness: 0.2-0.8mm
3. Width: 1000-1250mm
4. Surface and Treatment: Paint, double paint in same color
Paint thickness:
TOP: 25+/-5 microns (primer + polyster)
BACK: 7+/-2 microns 17+/-5 microns
Zinc coating: Z60-Z100g/m2
5. Coil Weight: Max.12MT
Coil ID: 508mm/610mm
Packing of PPGL Steel
The PPGL steel in coil adopts standard seaworthy export packing. It is strapped transversely and longitudinally with four steel straps respectively, and meanwhile, it comes with galvanized metal fluted rings for inner and outer edges protection. In addition, the PPGL steel coil comes with two disk shaped end covers made using galvanized metal and waterproof paper for ends protection, and is further protected by galvanized metal and waterproof paper around its inner and outer circumferential surfaces.
We are an experienced PPGL steel manufacturer and supplier in China. At PanHua Group we also offer color coated steel sheet, hot dipped galvanized steel, tinplate coil, cold rolled steel, and more.
