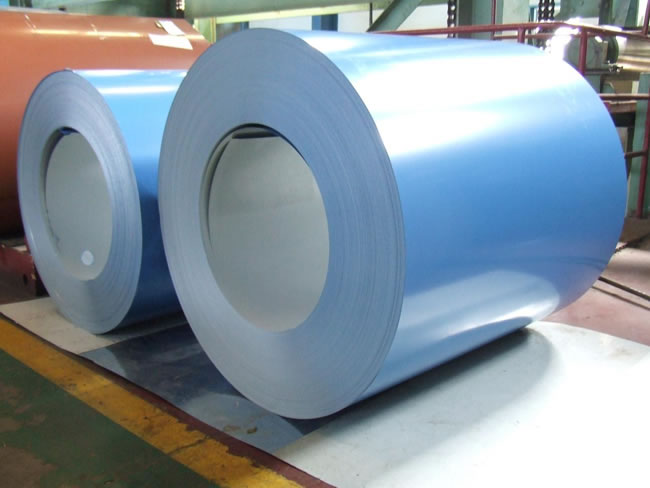

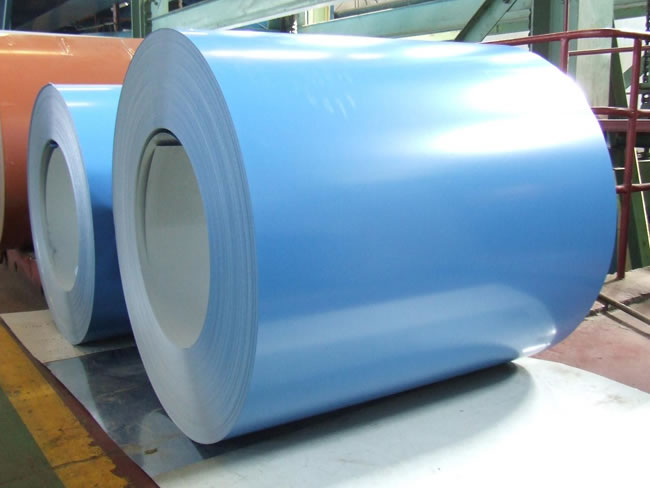

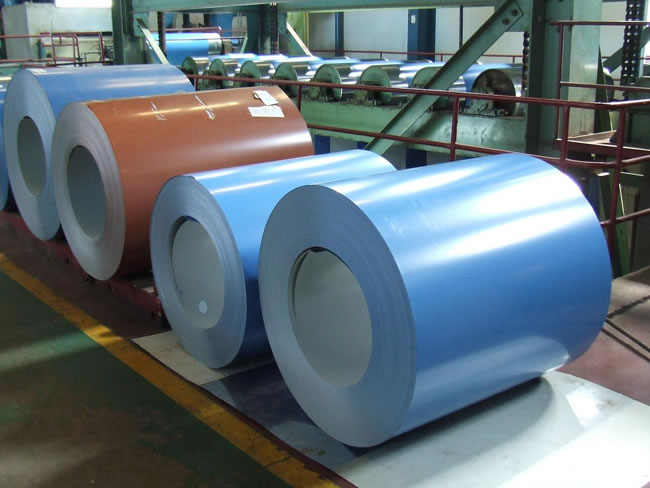

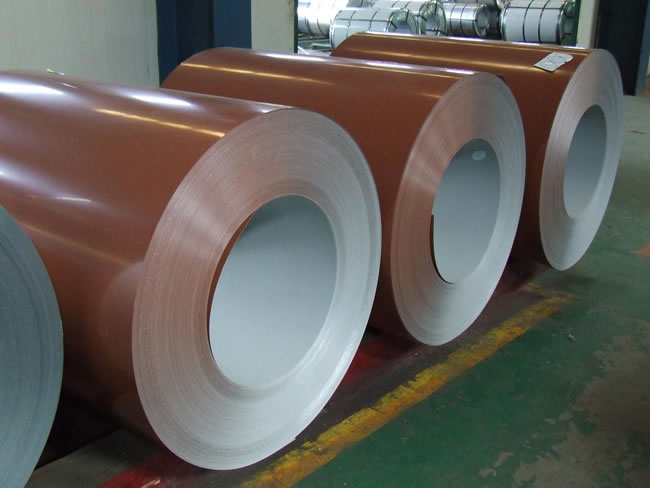

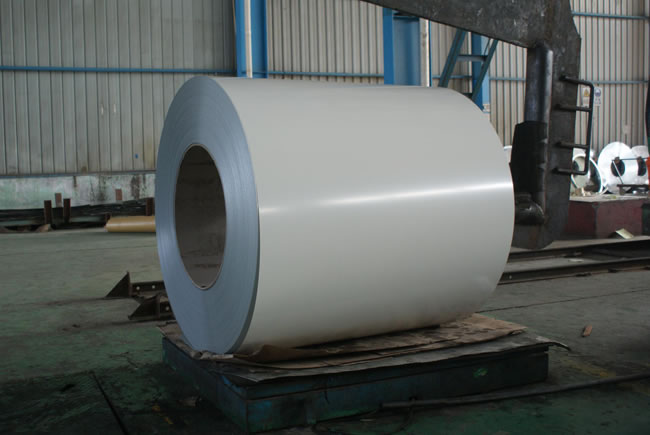

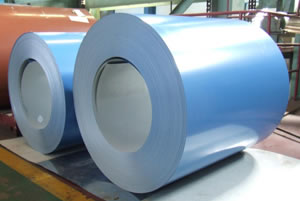

PPGI steel is also called prepainted galvanized steel. Our PPGI steel product has uniform thickness and high thickness precision, due to our adoption of ABB and Siemens automation control system during its production process. Meanwhile, our PPGI steel offers high surface flatness, well controlled delta E, and a series of excellent mechanical properties. In addition, the surface coating color for PPGI steel is customizable.
Due to above characteristics, PPGI steel is widely used as the base material for corrugated steel sheet, sandwich panel, and steel roof tile manufacturing industries. It is also used in home appliance, building material, transportation, furniture, and related fields. The PPGI steel can also be back-side coated, with maximum coating thickness of 17 microns, to suit gutter making demands. Currently, we have become the top one Chinese PPGI steel product
Specifications of PPGI Steel
1. Grade: CQ quality
JIS G3312, CGCC
EN10169, DX51D
2. Thickness: 0.2-0.8mm
3. Width: 1000-1250mm
4. Surface and Treatment: Paint, double paint in same color
Paint thickness:
TOP: 25+/-5 microns (primer + polyster)
BACK: 7+/-2 microns 17+/-5 microns
Zinc coating: Z60-Z180g/m2
5. Coil Weight: Max.12MT
Coil ID: 508mm/610mm
Packing of PPGI Steel
PPGI steel is delivered in coil and adopts standard seaworthy export packing. It is strapped transversely and longitudinally with four steel straps respectively, and also comes with galvanized metal fluted rings for inner and outer edges protection. Meanwhile, the PPGI steel in coil is also packed by galvanized metal and waterproof paper disk for protecting the two ends. In addition, its inner and outer circumferential surfaces are further protected by the galvanized metal and waterproof paper material.
PanHua Group is professional PPGI steel manufacturer and supplier based in China. We provide a broad range of products, including cold rolled steel, tinplate coil, hot dipped galvanized steel, PPGL steel, and more.
